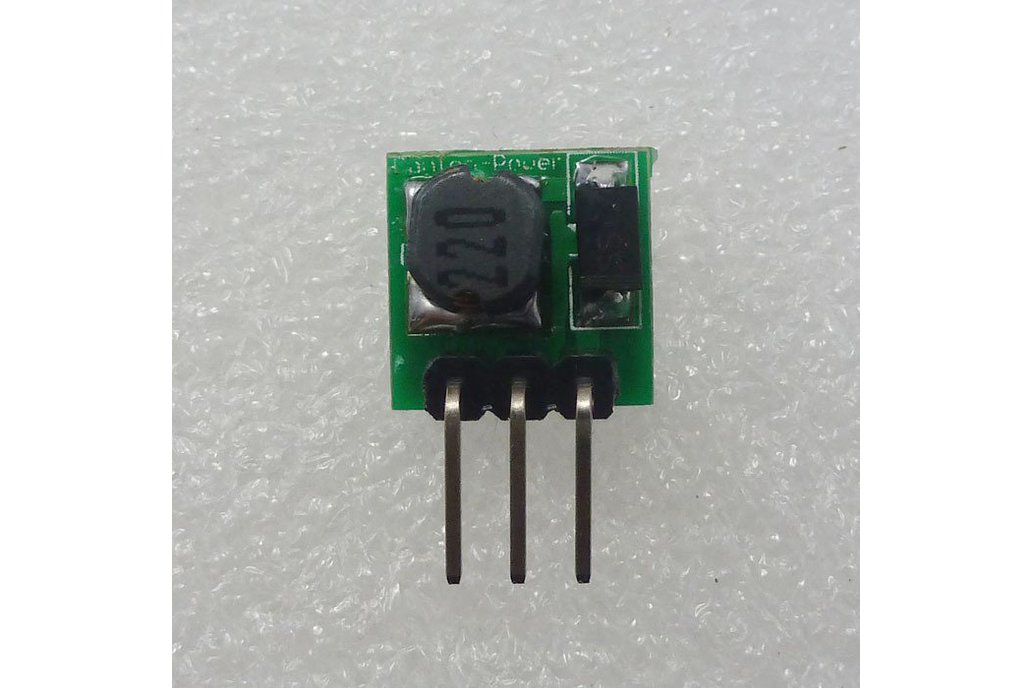

Ultra-small DC/DC 0.8-3.3V to DC 3.3V Step UP Boost PFM Voltage Converter Module Arduino ESP8266 stabilized supply 3.3V from one 3V cellDesigned by vitor_market, Ships from Portugal
This little booster will step up any voltage from 0,8V to 3.3V and give a fixed 3,3V or 5V output Modules option: 1A or 500mA max current out 3,3V Great for solar application to power any 3,3V devi...Read More…
This little booster will step up any voltage from 0,8V to 3.3V and give a fixed 3,3V or 5V output Modules option: 1A or 500mA max current out 3,3V Great for solar application to power any 3,3V device Power any 3V device from 3V cell or 1,5V cell
Input voltage 0.8 ~ 3.3V, output 3.3V Maximum output current: 500 MA,
Start Voltage 0.8V, Output Current 10MA
INPUT 1-1.5V, OUTPUT 3.3V 50-110MA; INPUT 1.5-2V, OUTPUT 3.3V 110-160MA; INPUT 2-3V, OUTPUT 3.3V 160-400MA; INPUT above 3V, OUTPUT 3.3V 400-500MA;
DC-DC Boost module working frequency 150KHZ. efficiency is normal 85% .
Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small),2.54mm pin pitch
MODULE 1A 3,3V TOP MODULE*
Input voltage 1 ~ 3.3V, output 3.3V
Start Voltage 0.8V,Output Current 80MA Input 1-2V,Output Current 100-200MA Input 2-2.5V,Output Current 200-500MA Input above 2.5V,Output Current 500-1000MA
DC-DC Boost module working frequency 100KHZ. efficiency is normal 80% , can be up to 95%. On-board high-precision, Size : 12mm X22mm (length X width), The input and output terminals using the wire bonding connection, parallel filtering tantalum capacitors, effectively filterING out the power supply noise. Overcurrent burn out warranty! Booster plate, regulator, the output voltage is always 3.3V!
MODULE OUTPUT 5V 500mA
Input voltage 0.9 ~ 5V, output 5V Maximum output current: 500 MA, Start Voltage 0.9V, Output Current 10MA
INPUT 1-1.5V, OUTPUT 5V 50-110MA; INPUT 1.5-2V, OUTPUT 5V 110-160MA; INPUT 2-3V, OUTPUT 5V 160-400MA; INPUT above 3V, OUTPUT 5V 400-500MA; DC-DC Boost module working frequency 180KHZ. efficiency is normal 85% . Operating ambient temperature : -25~+85 Degrees Celsius 2.54mm pin pitch,Arduino UNO Breadboard friendly. Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small) Weight : about 1.2g(Very light)
Applications： ①Battery powered equipment ②Wirels Module, NRF24L01 CC1101 CC2500 etc. ③Development Board,FPGA/CPLD STM32 ④Camera, Video camera ⑤VCR ⑥PDA ⑦LED Lighting ⑧Wireless communication equipment ⑨MP3/MP4 player ⑩Audio equipment
1 Input voltage can not be greater than the maximum input range 2 Output power can not be greater than the maximum power for a long time
