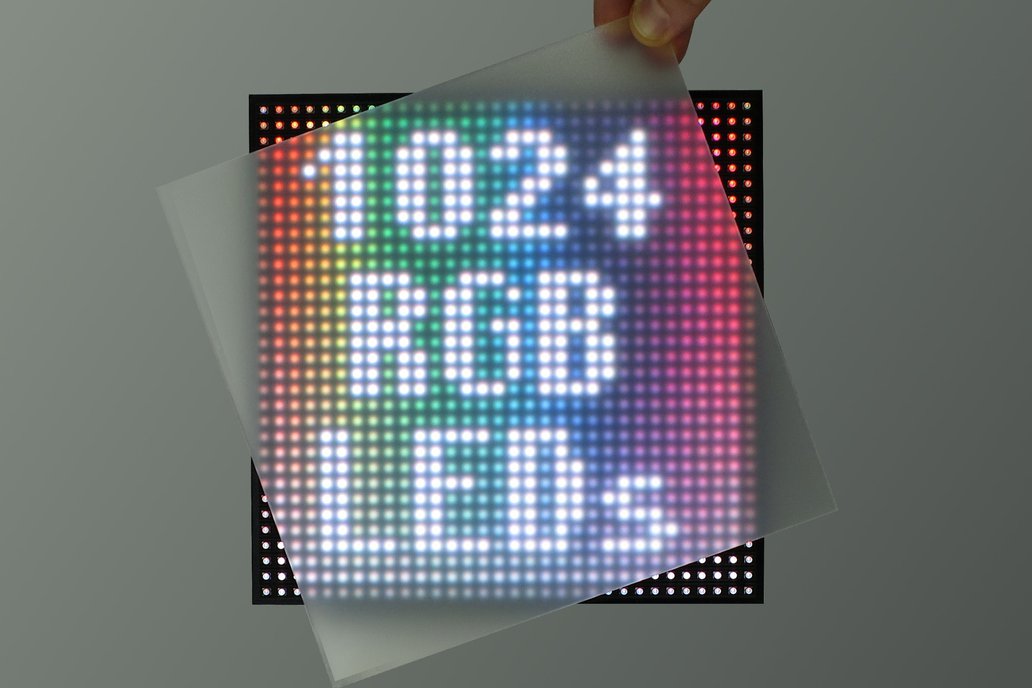

Make a display that can show colorful patterns or animated GIFs on a bright 32x32-pixel RGB LED Matrix Panel: Full bundle including remote

Easily control the display with the default program and included IR remote, or make your own project using the open source code

Product Info

• Basic soldering is required to assemble the board using all through-hole parts
• Load the prebuilt Aurora software on the Teensy 3.1 to play patterns and animated GIFs with no programming or Arduino experience required
• The remote control lets you easily choose an animation or pattern to display, and change options like the color palette.
• All libraries and sketches are Open Source so you can customize and add your own functionality using the Arduino IDE
• Expansion port brings Teensy 3.1's free pins out to edges of board (UART, SPI, I2C, ADC/DAC)

Contents

• 32x32 Pixel RGB LED Matrix Display Panel - 192mm (7.56”) square.
• 5V 4A Power Supply, 6’ USB Cable.
• Remote control and IR receiver to control the display from across the room.
• 4GB microSD card to store content for the display.
• 8 inch (203mm) square sheet of specialty lighting acrylic to diffuse the LEDs and improve the look of the display
• 8 inch (203mm) paperboard backing attaches to the display to hide panel electronics and makes the panel easy to mount
• The acrylic sheet and paperboard backing are designed to fit in 8 inch square shadow box frames available from several manufacturers (not included), or can be used to mount the panel in a custom enclosure.
