Mosfet MOS Transistor Trigger Switch Driver Board PWM Control Module 3-20VSold By ICStation, Ships from China
Product Introduction: Model: YYNMOS-1 (input and output are completely isolated) Input Signal: 3-20V PWM signal Output Capacity: DC 3.7-27V, and the current is within 10A PWM Frequency: 0-2...Read More…

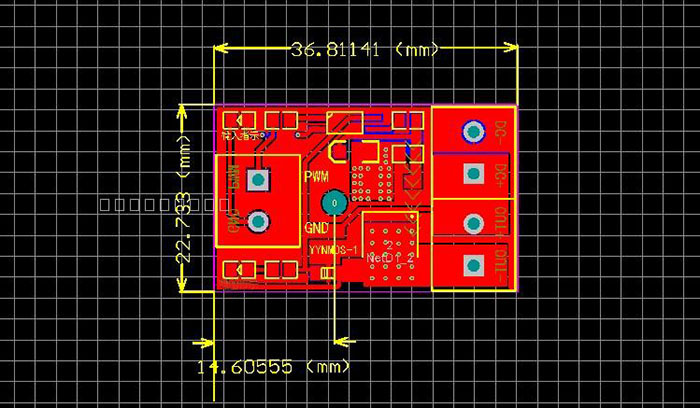

Model: YYNMOS-1 (input and output are completely isolated)
Input Signal: 3-20V PWM signal
Output Capacity: DC 3.7-27V, and the current is within 10A
PWM Frequency: 0-20KHz
Application: output port can control high power devices, such as motors, lamps, LED lamp strings, DC motors, micro water pumps, electromagnet valves; it can input PWM to control motor rotate speed and the brightness of lamp.

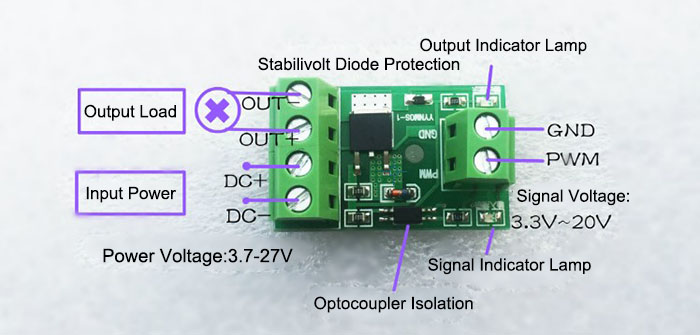

DC+: device DC power positive
DC-: device DC power negative
PWM: signal input port (connects MCU IO ports, PLC interface, DC power)
GND: signal negative port
OUT+: output port positive (connects device positive)
OUT-: output port negative (connects device negative)
