Description: Excellent positioning and navigation function, and it supports single system positioning of BDS/GPS/GLONASS satellite navigation system, random combination multi-system positioning, ...Read More…
Excellent positioning and navigation function, and it supports single system positioning of BDS/GPS/GLONASS satellite navigation system, random combination multi-system positioning, QZSS and SBAS system
Support A-GNSS and D-GNSS
High performance solutions, cold starting capture sensitivity: -148dBm; tracking sensitivity: -162dBm
Positioning Precision: 2.5m (CEP50, open area)
Low power consumption: BDS/GPS dual-mode continuous operating<25mA (3.3V)
Built-in antenna detection and antenna short circuit protection
Operating voltage: 5V
Board Size: 13.8*22.9mm

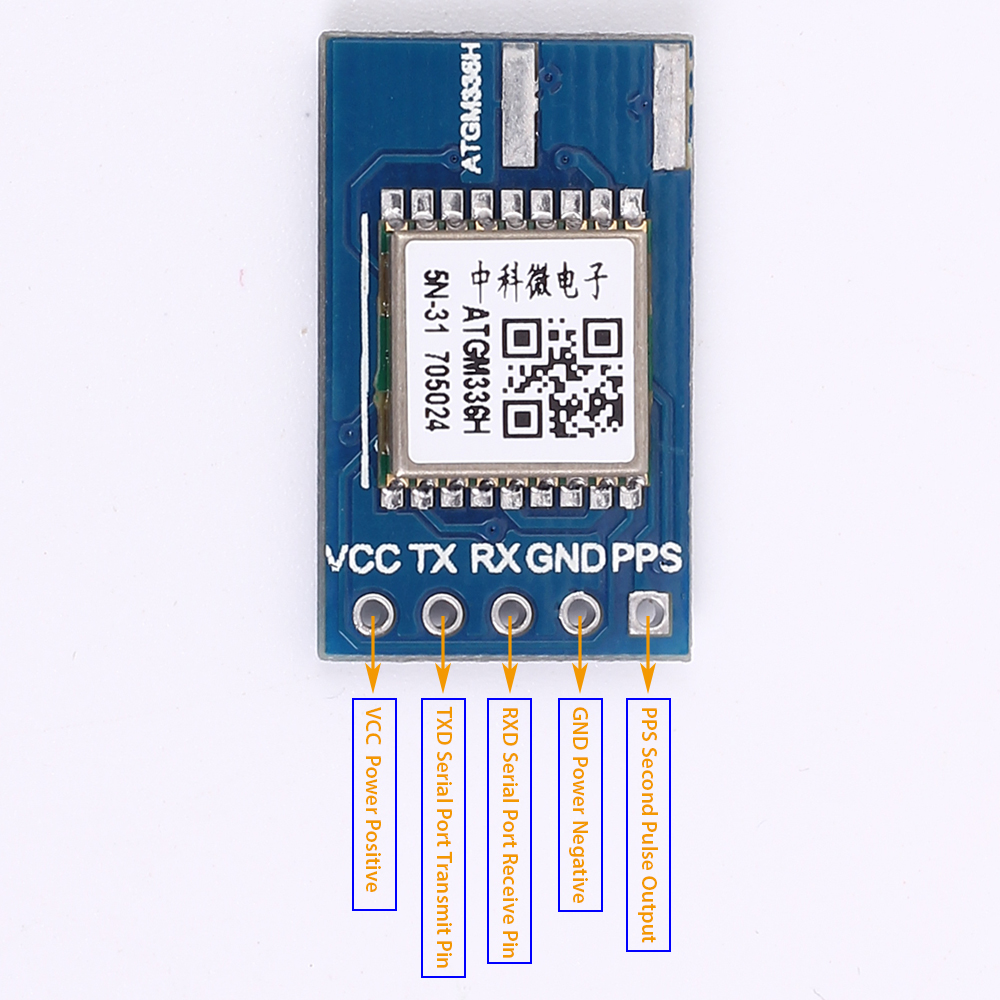

PPS: second pulse output
GND: power negative
RXD: serial port receive pin
TXD: serial port transmit pin
VCC: power positive
Note: plz contact us if you need more test materials.
