The DueProLogic is a complete FPGA Development System designed to easily get the user started learning and creating projects.Designed by Earth People Technology in United States of America
Designed and Assembled in the United States of America The DueProLogic is a complete FPGA Development System to get started with programmable logic. DueProLogic FPGA Development System The DueProLo...Read More…
Designed and Assembled in the United States of America
The DueProLogic is a complete FPGA Development System to get started with programmable logic.
The DueProLogic (DPL) and its integrated development and distinctive runtime environment has been specifically designed for Electrical Engineering students, hobbyists, and entrepreneurs prototyping/developing/running projects involving logic, with the added opportunity, should it be needed for your project, of readily mating with a widely used microprocessor board, the Arduino Due, and other ARM Cortex compatibles. The combination of FPGA programmable logic and microcontroller is unbeatable in an educational student learning setting and in many other projects where each can bring its strength.
The DueProLogic includes a 6x6 LED Array. Each LED is directly sinked to an individual FPGA pin. This allows the user to create advanced projects by easily asserting a single pin of the FPGA. There is also a jumper selectable power enable for each four block group of LEDs. This allows the user to turn off the LEDs and use the FPGA pin as Input/Output on the 36 pin connector.
The DPL gives learners the opportunity to have an appropriate hands-on approach when learning logic, exploring different iterations of schematic/code designs with simple uploads of the design, and the operation of those circuits with relatively easy runtime passing of project parameters and data, and an abundance of headers that can interface to external components, without having to spend inordinate amounts of time reading datasheets, designing the right combinations of gates on multi-gate chips, and building/revising/debugging/revising repeatedly… spaghetti bowls of wires and chips on multiple breadboards to connect to those same external components. With the DPL’s FPGA, projects can also more easily be attempted which rely on asynchronous, exceedingly fast, and even multiple separate concurrent logic structures operating in parallel which would have traditionally required a plethora of chip gates or multiple high speed microprocessors to implement parallel processes. Logic circuits are implemented within the FPGA at few-nanosecond gate speeds and highly parallel in operation, effectively a few hundred MHz; Microprocessors often rely on inherently slower single threaded program loops with interrupt servicing, which is typically much slower. Programmable logic is today’s technology for logic learners and implementers, replacing discrete logic chips.
The DPL allows the learner to be more productive and better focus on the underlying logic and integration with the non-logic aspects of non-trivial projects. Projects and solving real-world applications might involve:

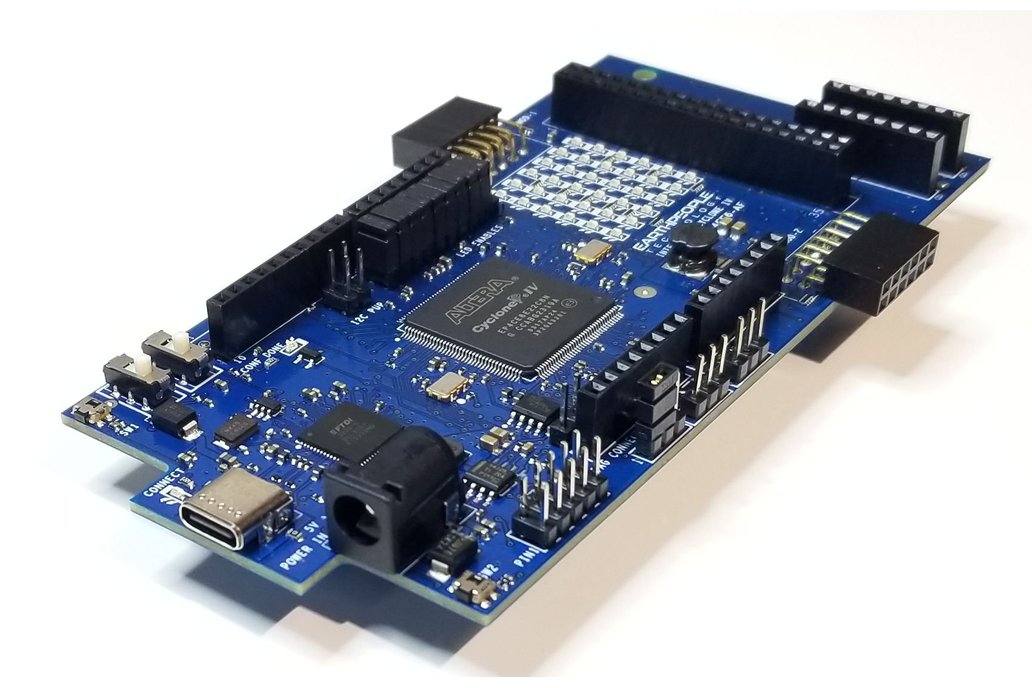

The DPL is a complete FPGA development environment. It includes a powerful Altera Cyclone IV FPGA, High-Speed USB interface chip, Full SD Card interface connector, and 4Mb Configuration Flash (for the FPGA). The USB interface chip is an FT2232H with Dual Serial Channels. One channel is dedicated to loading the configuration Flash for the FPGA. The second channel provides a high speed interface for bi-directional communications with the FPGA. Once the configuration Flash is loaded with the users synthesized code, a reset will cause the FPGA to read the Flash and load up the stored image into the FPGA. ![enter image description here](http://www.earthpeopletechnology.com/wp-content/uploads/2015/08/DueProLogic Hardware Overview Top Layer Callouts 001.jpg "enter image title here")
The block diagram shows all of the parts of the DueProLogic. There are two main power supplies, +1.2V and +3.3V. The +1.2V powers the core of the FPGA while the +3.3V powers the Input/Outputs of the FPGA as well as provides power for user circuits. The DPL contains two oscillators, 66MHz and 100MHz. The 66MHz oscillator is used to provide clocking for the EPT ActiveHost USB communications core. The 100MHz oscillator can be used by the user clocked up using one of the onboard Clock-DLL modules.
The DPL User Manual comes complete with instructions to set up all the drivers, the Altera Quartus development environment, and get started creating FPGA projects. The User Manual walks the user step by step from start to finish of the first FPGA project.
The included Windows development environment kit includes: Quartus II for compiling user code, assigning pins, project setup, programming and other items. The kit also includes the EPT ActiveHost core for the DPL, to facilitate communication between the PC and DPL while the DPL is running a developed project. The kit also EPT has developed a .dll that allows Quartus II to directly program the DPL in the same way USB-Blaster works with other Altera populated development boards.
The FPGA on the DPL can be programmed with the HDL project created by the user. Configuration is quick and easy. All that is required is a standard USB cable with a Micro Type B connector, and the EPT Blaster Driver DLL installed on the PC. There are no extra parts to buy - just plug in the USB cable and connect the DueProLogic to the PC.
The DPL Configuration Flash is programmed using the Quartus development environment and the EPT Blaster Driver. Once the the Configuration Flash is programmed. A reset will cause the FPGA to begin configuring itself using the Flash.
The board comes preloaded with Blinky, the test that each board goes through before being shipped with conductive foam in a static-control bag. Also included with the product is a CD (do we have printed side on CD?) with the needed PC/Quartus/DPL drivers, library, User Manual, Schematic (.pdf and Eagle 6.5), and sample projects, which are also available on the EPT web site. To save expense and possibly the environment, and because many purchasers already have a micro-USB data cable, one is not included.
Specifications: Designed to be stand-alone and/or be mated with an Arduino Due, LeafLabs Maple, or Olimexino-STM32 Designed to be inserted directly into a standard breadboard, for easier prototyping Designed with the Arduino Due/Mega shield header layout, to accommodate 3.3v-compatible Arduino-type shields, plug-in modules EPT offers, or modules you might develop using standard 0.1” pitch single or double row pin headers. Designed and assembled in the USA, made to operate at the Industrial temperature classification of 85°C, and made to be RoHS (no Lead) compliant around the world. The DPL is made to accept standard USB cable connection and power input of 5-15VDC, but the header logic pins are only 3.3V compatible, like most other high-speed products using today’s chips. To make a powerful board such as the DPL, you can’t make it 5V-based. Applying 5V to a pin connected to the FPGA chip will likely cause permanent damage to the FPGA chip.
