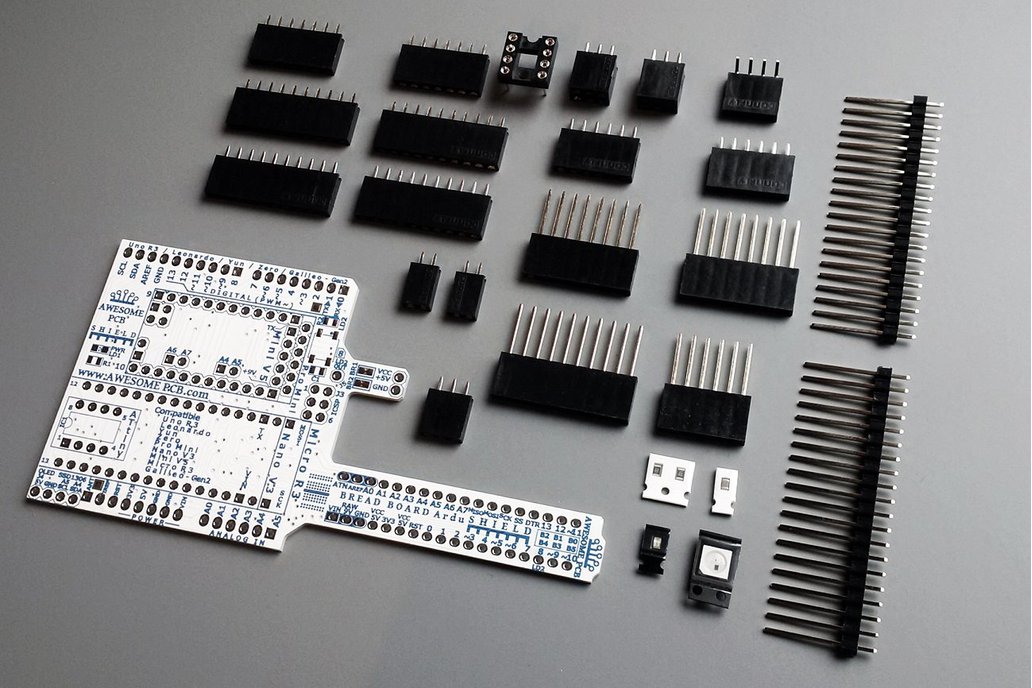

ArduShield it is most universal shield for most popular Arduino boards like a Arduino UNO R3, Mini, Pro Mini V5, Nano V3, MicroR3, LeonardoDesigned by Awesome PCB, Ships from Poland
What is it? ArduShield it is most versatile development shield for most popular Arduino boards like a Arduino UNO R3, Mini, Pro Mini V5, Nano V3, MicroR3, Leonardo, Yun, Zero, Galileo Gen2 and many...Read More…
ArduShield it is most versatile development shield for most popular Arduino boards like a Arduino UNO R3, Mini, Pro Mini V5, Nano V3, MicroR3, Leonardo, Yun, Zero, Galileo Gen2 and many other derivative boards created by great community of people.
Idea for ArduShield was born out of the problem that hit several Arduino fans.
First we found that we had many shields that fit only to Arduino UNO, but they don’t fit to Arduino Mini, Pro Mini, Nano and other type of smaller Arduino board. Smaller Arduino boards are much more cost effective then Arduino UNO, and we want to use them to.
Arduino UNO R3
Breadboard 840 points
Socket for OLED diplay SSD1306
ArduSHIELD – schematic (PDF: 644 kB)
ArduSHIELD – detail assembly instruction (PDF: 4,99 MB)
ArduSHIELD – flyer assembly instruction (PNG: 391 kB)
How to program ATtiny85 with ArduSHIELD – instruction (PDF: 5,16 MB)
Example of Ethernet shield drive by Arduino Micro.
Example of 2×16 LED display shield drive by Arduino Pro Mini.
Simplify design with AdruShield
Second thing what most bother us over time, was when we have to start one more time re-wiring Arduino and bread board because of some small mistake which cannot be find. Idea was to shrink down amount of the cable between Arduino UNO and Bread Board minimum by half.
Move Arduino pins to bread board
Great things about ArduShield is that you can have access for all pins of Arduino on bread board instantly.
Power supply on bread board
Another useful thing about ArduShield is that you can have power supply to your bread board.
You can also use VCC or GND signal separately if you want just by cutting narrow trace on BR1 or BR2. If you want to go back with this connection just place a drop of tin between cuted trace.
Programming tool for Arduino Mini and Arduino Pro Mini
ArduShield can be use like a programing tool for Arduino mini and Arduino Pro Mini. We know that both of this board require external programmer.
Now if you have Arduino UNO board you can connect Arduino Mini or Arduino Pro Mini instantly to ArduShield and play with them via Arduino IDE.
Access for analog pins A4 A5 A6 and A7 of Arduino Mini and Arduino Pro Mini
Now you will get access for all of the pins Arduino Mini and Pro Mini on bread board. Till now when you need to use pins A4, A5, A6, A7 with Arduino Mini there where make short cut with pin 8 and 9 on bread board.
With Arduino Pro Mini pins were not place in the 0.1inch (2.54mm) raster. They had this weird spacing. Now this change with ArduShield.
Full flexibility when you design with ArduShield
ArduShield provide access for all 4 holes from each side of bread board.
Comparing with Arduino Micro and Nano we have access for 2 and 3 pins after assembly PCB on bread board.
Access for 4 holes on each side give us high flexibility during design.
Two prototype on one bread board with ArduShield
The realy nice thing about this shield is that you can develope even 2 prototype at the one time on one bread board, without the need to disconnect everything. How it is frustrated when you need to jump shortly to another prototype and check some new idea!
Now this is easy and simple.
Just flip side of the AdruShield on bread board and you are ready to go with your second idea!
What is the ArduShield compatible with?
Arduino UNO R3
Arduino Micro R3
Arduino Nano V3
Arduino Mini V5
Arduino Mini Pro
Arduino Nano V3 – clon
Compatibility based on schematic analysis:
