Order list:

• 2PCS Lora1276 RF Modules
• 2PCS Spring antennas

Lora1276 is a 100mW and ultra small size wireless module, which integrates Semtech RF transceiver chip SX1276 and adopts LoRa TM Spread Spectrummodulation frequency hopping technique. The features of long distance and high sensitivity (-139dBm) make this module perform better than FSK and GFSK module. Multi-signal won't affect eachother even in crowd frequency environment; it comes with strong anti-interference performance.This module is widely used in AMR , remote industrial control filed.

Features:

• Frequency Range: 868/915MHz
• Sensitivity up to -139 dBm
• Maximum output power: 20dBm
• 10.3mA@receiver mode
• Sleep current <200nA
• Data transfer rate：@FSK,1.2-300kbps
• @Lora TM，0.018-37.5kbps
• Lora TM ,FSK，GFSK and OOK Modulation mode
• 1.8-3.7 V Power supply
• 127 dB Dynamic Range RSSI
• Packet engine up to 256 bytes with CRC
• Operating Temperature Range：-40 ~ + 85 °C
• Built-in temperature sensor and low battery indicator
• Excellent blocking immunity

Applications:

• Remote control
• Remote meter reading
• Home security alarm and remote keyless entry
• Industrial control
• Home automation remote sensing
• Individual data records
• Toys control
• Sensor network
• Tire pressure monitoring
• Health monitoring
• Wireless PC peripherals
• Tag reading and writing

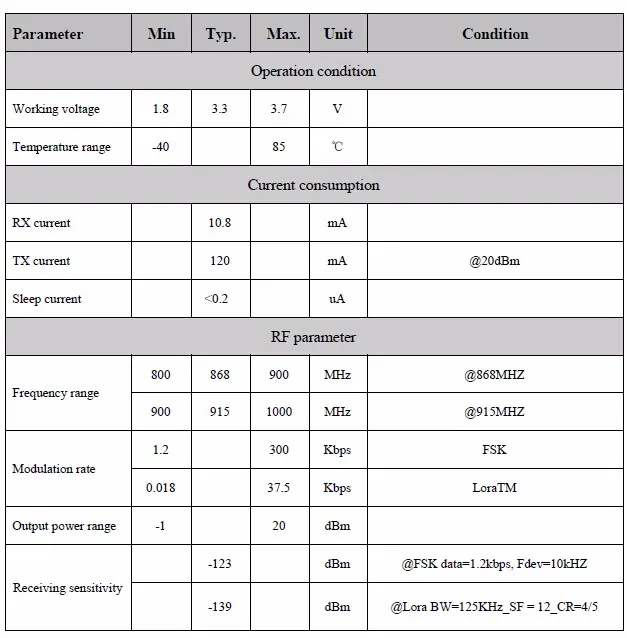

Electrical Characteristics

Pin definition

Pls leave a massage to confirm which frequency you need,otherwise, we will send you 868MHz frequency :)
